Shenzhen EcoRider Robotic Technology Co., Ltd
 |
| Place of Origin: | Shenzhen, China |
| Brand Name: | Ecorider |
| Certification: | CE RoHS FCC |
| Model Number: | E5 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiation |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Tire Size: | 19 Inch | Tire Brand: | Kenda |
|---|---|---|---|
| Motor Power: | 4000w Or 2000w | Max Speed: | 20km/h |
| Max Mileage: | 30-35km | Charging Time: | 4-5 Hours |
| High Light: | electric scooter segway,segway style scooter |
||

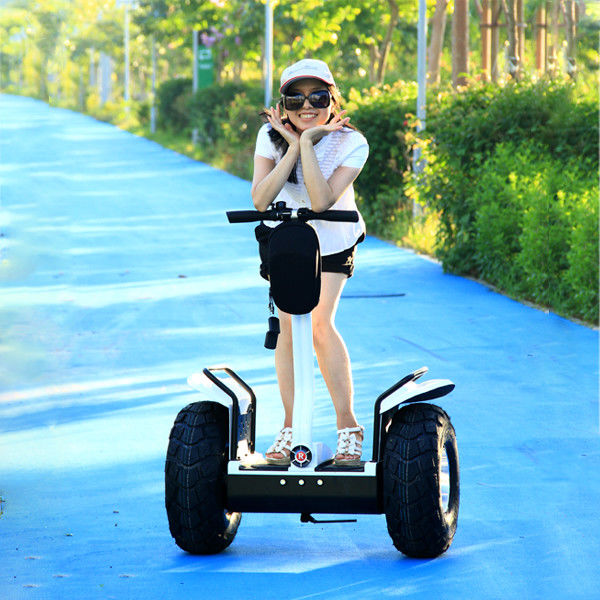

Samsung Lithium Off Road Segway Electric Scooter 72v / 8.8ah CE
1.Production Introduction
Escooter(two wheel electric stand up self balance chariot scooter/vehicle/transporter/bike or mobility scooter) is a substitute tool for walking, which uses gyroscope to intelligently control balance. It moves with the gravity center of the rider, making forward or backward as the gravity center goes. The turning radius can be zero, which means that it can be operated in a very narrow space.
You can feel very comfortable and fresh when driving balance Escooter. Escooter has two-dimensional inertial navigation system,it can feel your posture.When you hold still,Escooter will keep still.When you pull forward,Escooter will move forward.If back,it also back.You can feel nature,safe and free.
2.Detailed Information of Escooter -ESOI
(1)Improved Appearance
(a).New design handle steering mechanism.
It is made of whole molding aluminum alloy.It is more beautiful.It is easy to turn around because of its handle designed as ergonomic.
(b).New model pedal.
Balance Escooter is made of whole molding silica ge.which make scooter body more stable.Its waterproof and dustproof function is improved.It is more stable and safe for driver’s standing because of its increased friction by grain.
(c).New wheel and tire.
It is made of new wheel and smooth tire with high quality.
(2)Improved Performance
(a).New imported driving motor and transmission mechanism.
It is more powerful.The capacity of driving is increased by37.5%.It is easy to climb 30 degree slope.
(b).Powerful algorithm,with high power motor,the max load is improved,which make driver more safe.
(c).Imported transmission gear.It has no noise during driving.The noise is the lowest compared with other similar scooter.
(d).New sound alarm function.It has power alarm,over speed alarm,and alert alarm.The driving safety is improved.
(e) Remote Control Three Modes Switching
1).Default Mode:max speed is18km/h,flexible and sensitive turning.
2).Beginner Mode:max speed 8km/h, slow turning.
3).Pulling Mode:easy to pull it
ESOI with litium battery
· 1.New steering mechanism, giving a much more stable ride and a faster response
· 2.Updated processed motherboard, making it safer and easier to control.
· 3.Waterproof throughout, an improvement on the old model.
· 4.Advanced design for steering and handling, the overall look is a big improvement.
· 5.It has a light exquisite steering mechanism, enabling a more flexible turning circle.
· 6.The new model has 4 floor detectors, improving the safety and stability, as a result the rider will not fall.
· 7. Adjusted big power motor.Max power can achieve 1600W overall, making it easy to climb continuously an a 30 degree slope.
· 8. A siren alarm sounds as a reminder to the rider as of the state of scooter
· 9.GPS tracking is optional
· 10.High quality wheel with tires to suit both racing and off road
4.Frame of Escooter -ESOI
5.Parameter of Escooter -ESOI
| DESCRIPTION | Green product (Electric, healthy) | |
| No pollution and zero consumption | ||
| CE & ROHS &FCC certification | ||
| SPECIFICATION | Net Weight | 48 kg |
| Dimension | 43*43*68 cm | |
| Max cruise speed | 18km/h | |
| Max load | 125 kg | |
| Max. Mileage | 35-40 km | |
| Max climb capability | 30 degree | |
| Min turning radius | 0 | |
| Charging time | 5 h-6 h | |
| Battery | Lithium battery,36V.15Ah | |
| Power | Two imported DC Motor,DC servo drives | |
| Voltage | 100 v-240 v | |
| Max Power | 2000 watts (2*1000w/pc) | |
| Lifetime of battery | 1-3 years | |
| Tire | 19*7-8 inch shock-absorb tire | |
| Wheel | Superior integrated aluminum magnesium alloy | |
| Height of handle | 80-110 cm adjustable | |
| Height of footplate | 10in / 26cm | |
| Specification of footplate | 11.5×25 in / 16×40 cm | |
| Max. Height above ground | 13 cm | |
| Standard Pressure | 250 kpa | |
6.Applications of golf Escooter
7.Package Details
G.W: 66 kg Dimension:0.3 CBM,72 Units per 20ft Container
Double package protect Escooter.Make sure that it is safe in deliver.
The products listed in this content is just for reference.See actual objects for detailed sizes.Authority for the interpretation
of the products are reserved by this company!
