Big Wheel Two Wheeled Self Balancing Scooter Mobility Off Road Brushless 4000W Motor

Big Wheel Two Wheeled Self Balancing Scooter Mobility Off Road Brushless 4000W Motor

    • Big Wheel Two Wheeled Self Balancing Scooter Mobility Off Road Brushless 4000W Motor
    • Big Wheel Two Wheeled Self Balancing Scooter Mobility Off Road Brushless 4000W Motor
    • Big Wheel Two Wheeled Self Balancing Scooter Mobility Off Road Brushless 4000W Motor
  • Big Wheel Two Wheeled Self Balancing Scooter Mobility Off Road Brushless 4000W Motor

    Product Details:

    Place of Origin: China
    Brand Name: Ecorider
    Certification: CE, RoHS, FCC
    Model Number: E8-2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Negotiation
    Packaging Details: 78*51*36CM and 56*44*61CM, 0.33m³
    Delivery Time: 2 work days
    Payment Terms: Western Union, T/T, D/P, L/C
    Contact Now
    Detailed Product Description
    Batter Type: LG / Samsung Lithium 72V.18 Ah ,1266W Motor Power: Brushless 4000W Motor With Big Gearbox
    N.W/G.W: 54kg/66kg Max Climb Capability: ≤45 Degree
    Max Speed: 20km/h Max Range: 60km-70km
    Color: Black, White,apple Green,red And Blue
    High Light:

    chariot electric scooter

    ,

    two wheel chariot

    Big Wheel Self Balance Mobility Scooter off Road Electric Chariot Scooter




    Introduction of Personal Transporter/Electric Chariot balance Scooter

    The electric chariot scooter is a fully open, all electric chariot with swift response and sensible mind which can easily figure out what you are thinking about, bringing you the unprecedented driving experience you even experienced.

    The real innovation in this self balance chariot, though, is that it can stay upright, all by itself. The driver does not need to balance it at all. This is achieved with the innovative use of one gyroscope under the sub-structure where it also lies the working principle of this electric chariot. It simply follows where your gravity center goes. With an integrated circuit PCB board inside to control the signal flow, EcoRider moves forward as the driver lean forward and slows down as the driver lean backward or lower the gravity center. Braking device is totally unnecessary in this scooter. This electric chariot can even turn 360 degree with 0 radius, making it flexible under narrow space.

    With the traffic getting more and more congested and environment getting worse, you definitely need a product like this to either commute or showing off yourself, not to mention protecting the environment at a great sense! Choose us, choose happy scootering!


    1. Features of electric China chariot E8-2

    - Default Mode:max speed is 20km/h,flexible and sensitive turning.
    - Use brush-less motor which is more stable and powerful.
    - Updated motherboard with two 72v Samsung Lithium ion battery system, range can be over 60km which is better choice for outdoor use, golf and rental business
    - 21 inch Kenda tire shock-absorb with strong flange plate
    - App function with Bluetooth, controlled by mobile.


    2. Specifications of electric China chariot E8-2

    Specifications of China electric chariot scooter
    Net Weight 52kg
    Dimension 82*48*58 cm
    Color 5 colors available
    Max.cruise speed 20km/h(customized)
    Max.load 150kg
    Max.mileage 60-70km
    Max.climb angle 45 degree
    Min.turning radius 0 degree
    Charging time 4-5hours
    Battery Two Samsung Lithium Battery 72V, 8.8AH
    Power Brush-less motor with big gearbox
    Voltage 100V-240V
    Max.Power 4000watts(2000w*2pcs)
    Lifetime of battery 1-3years
    Tire 21*7-8inch shock-absorb tire
    Wheel Superior integrated aluminum magnesium alloy
    Height of handle 800-1100mm adjustable
    Height of footplate 260mm
    Max.height above ground 130mm
    Air-inflation pressure 250kpa
    HS CODE 8711901090
    Warranty 12 months

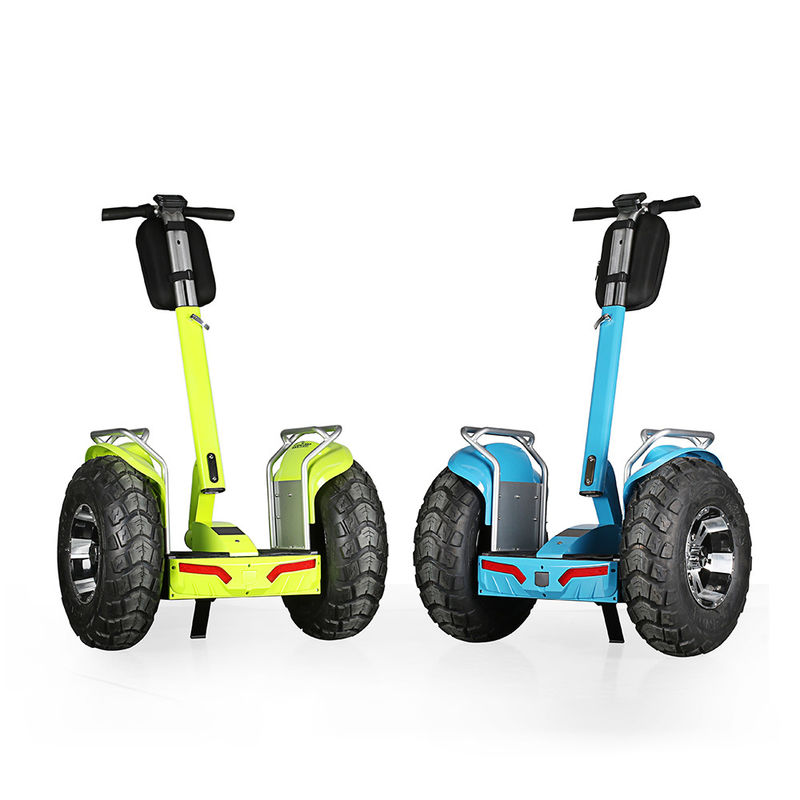

    3. Photo Show of electric China chariot E8-2

    Big Wheel Two Wheeled Self Balancing Scooter Mobility Off Road Brushless 4000W MotorBig Wheel Two Wheeled Self Balancing Scooter Mobility Off Road Brushless 4000W Motor





    4. Package Detail of electric China chariot E8-2


    G.W: 66 kg
    Carton Size:88*52*72 cm; 0.3CBM per carton,72 pcs per 20ft container.
    Double package protect EcoRider.Make sure that it is safe in delivery.




    Packing list of our electric chariot x2
    Handle 1 pc User manual 1 pc
    Key 2 pcs Driving handle 1 pc
    Fender 2 pcs Pedal mat 2 pcs
    Tire 2 pcs Battery charger 1 pc
    Front bag 1 pc Helmet 1 pc
    Bell 1 pc Knee and elbow pad 1 pair




    5. FAQ of electric China chariot E8-2


    1. How to order?

    Simply inquiry us by your wanted model. With deals made, we can send the product to your door through DHL, FedEx, UPS, etc.




    2. How does China Small Electric Motor Scooters move? How does it balance?

    ESCOOTER senses the lean of the rider with the assistance of two-dimensional inertial navigation system and two accelerometers that sense the angle of the ESCOOTER with respect to gravity at
    100 times per second. It balances the rider by applying forces to the ground in the direction of the lean. If you lean forward the ESCOOTER applies motor torque to the wheel to push it forward, bring you upright and balance you. When you lean back, it applies reverse torque to slow you down and balance you accordingly.




    3. Where is China Small Electric Gyropode can be used?

    It has wide application as below:
    Police, security personnel patrol
    Personal travel, amusement and short-distance travel
    Renting in tourist attractions, parks and amusements playgrounds
    Intelligent robot moving platform
    Industrial park, factory, greenhouse personal transporter
