Shenzhen EcoRider Robotic Technology Co., Ltd
|Place of Origin:||China|
|Minimum Order Quantity:||1 pc|
|Packaging Details:||Packaging Details:1.Double canton box or plywood package; 2.PackageSize:700mm*450mm*500mm; 3.20ft container:80pcs; 4.40ft container:175pcs|
|Delivery Time:||1-2 Working day|
|Payment Terms:||Western Union, T/T, MoneyGram,|
|Battery:||Lithium 72V.8.8Ah||Max Load:||150 KG|
|Max Speed:||20 KM/H||Max. Mileage:||35-40 KM|
|Charging Time:||4-5 H||Voltage:||100V-240V|
|Max Power:||4000W Motor With Big Gearbox||Color:||Black,White,Red,Blue,Apple Green|
|CTN:||880 *520*720 MM||N.W/G.W:||52 KG/62 KG|
|Light:||Soft Front And Rear LED Light Bar.||Max Time:||3-3.5 H|
electric self balancing scooter,
self balance scooter
Off Road 4000 Watt Electric Self Balancing Scooters
Chariot Smart 72v 8.8ah
Escooter(two wheel electric stand up self balance chariot scooter/vehicle/transporter/bike or mobility scooter is a substitute tool for walking, which uses gyroscope to intelligently control balance. It moves with the gravity center of the rider,Making forward or backward as the gravity center goes. The turning radius can be zero, which means that it can be operated in a very narrow space, reaching almost every possible place where people can make.
Feature of new model:
1.New steering mechanism, more stable and comfortable, faster response
2.Updated process motherboard, more safe and easy to be controlled
4.Advanced design for steer and handle, beauty and fashion
5.More exquisite and light steering mechanism, more flexible turning
6.New model pedal with 4 detecting switch.Driver will not fall down in driving.
7.Adjusting big power importing motor.Max power of single wheel can achieve 800W, easy to climb continuously 30 degree slope.
8.Siren alarm, reminding the statue of scooter
9.GPS tracking is optional
10.High quality wheel with smooth racing tire.
Electric Chariot Vertical Balance Scooter, Speed up electric scooter, Self-Balancing Vehicles
Performance Parameter of mobility scooter

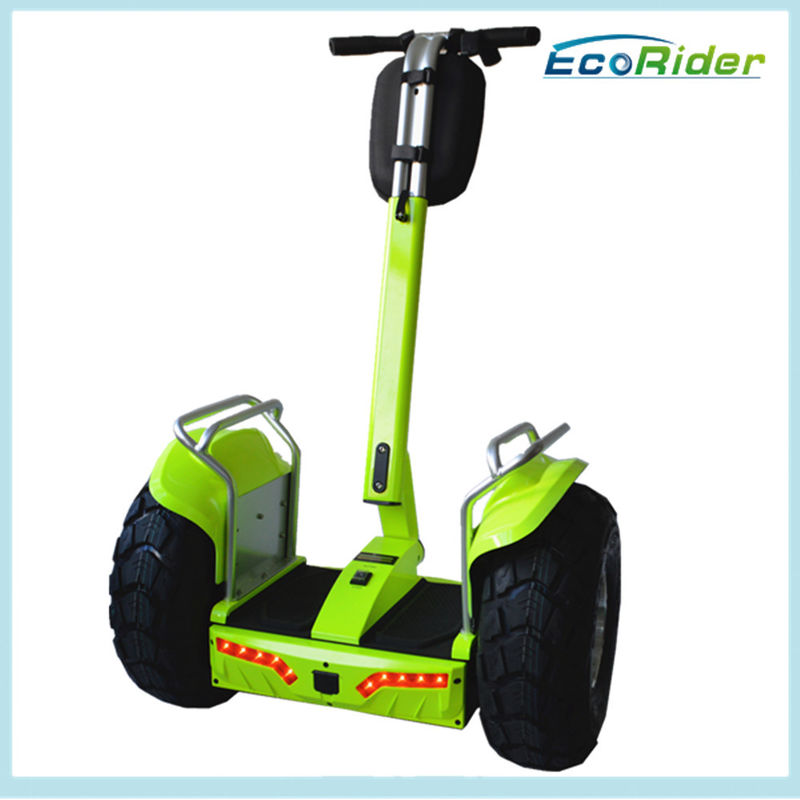

The pictures of self balancing scooter
Description of Escooter(ESOII)
1.LED battery display
2.Lock/Unlock by remote control
3.Default horizontal position3.
4.Front light lighted and back light alarm
5.Three different Speed Mode Switching
6.Motor:Two import DC Motor, DC servo drives
7.Max distance:30 km depends on terrain and driving skill
|Gross Weight/Net Weight||62kg/52kg|
|Max. cruise speed||20km/h|
|Max. climb capability||45 degree|
|Min. turning radius||0 degree|
|Battery||72V, 8.8Ah ( Samsung lithium battery)|
|Max. power||4000w (2*2000w/pc)|
|Life of battery||1-3 years|
|Wheel||12inches/26cm,Superior integrated aluminum magnesium alloy|
|Height of handle||800-1100 mm adjustable|
|Height of footplate||10 inches /26cm|
|Specifications of footplate||11.5*25 inches|
|Max. height above ground||120mm|
|Colors||7 colors available|
|Certifications||CE, FCC, ROHS|
|Packing Detail of Escooter|
|Inner: Carton||Outer: Plywood box|
|Volume:||0.3cbm (About 75 PCS per Container (20feet#)|
|Packing list (Standard kits/parts)|
|Handle: 1 PC||Key: 2 PCS||User manual: 1 PC||Fender: 2 PCS|
|Driving handle: 1 PC||Pedal mat: 2 PCS||Tire: 2 PCS|
|Battery charger: 1 PC|
Application Field--Where is Escooter can be used?
This Mobility scooter can be used for leasing, tour,patrol.
It has wide application as below:
Police, security personnel patrol
Personal travel, amusement and short-distance travel
Renting in tourist attractions, exhibition hall,hotel,parks,and amusements playgrounds
Intelligent robot moving platform
Industrial zone, factory, warehouse personal transport
Packing list (Standard kits/parts)
|Packing List(Standarf kits/parts)|
|User Manual||1pc||Steering Road||1pc|
|Spare Fuse||1pc||Pedal Mat||2pcs|
|Bell||1pc||Knee and elbow pad||1pc|
With three years of Experience, advanced tech and skilled workforce, we are confident to supply our scooters direct to you at competitive prices with no middle man.
We offer an extensive range of stylish scooter designs in eye-catching colours.There's bound to be a scooter to get you whizzing off down the road.Don't forget to check out our latest three model ESII and ESIII and ESOI(off road).
OEM service provided, welcome to consult for more information.
1.There are many sellers in China. How can we choose?
Self-balancing scooters are new in China, just 2--3 years on market, you can imagine how the market responses. Not all factories are qualified and experienced. So it is much important to find an experienced manufacturer instead of resellers or inexperienced exporters. We have many dealers in China and overseas. In China, some companies use unfair competition by offering low price (maybe lower profit or no profit) . That is why some of them offer lower prices than ours. Once we find this situations, we will stop supplying to them. So welcome to report to us. We supply professional technical support and 12 month warranty. We do not provide technical support for those who do not buy from our factory directly or our authorized resellers.
2.How to maintain and clean Escooter?
Professional maintaining and cleaning are not necessary for it.What you need do is keep the power is enough before your driving.Please keep it charged twice after its power run out completely.Please supplement power if you keep it not used over 3 weeks. You can use dry brush to clean tire and bottom or use wet soft cloth to clean its body.
3. How does Escooter move? How does it balance?
Escooter senses the lean of the rider with the assistance of two-dimensional inertial navigation system and two accelerometers that sense the angle of the Escooter with respect to gravity at 100 times per second. It balances the rider by applying forces to the ground in the direction of the lean. If you lean forward the Escooter applies motor torque to the wheel to push it forward, bring you upright and balance you. When you lean back, it applies reverse torque to slow you down and balance you accordingly.
4. Is it safe for driving Escooter?Will it fall down if the speed is too fast?
Escooter has safe alarm system,when you drive too fast,It will alert and control the scooter body directly.The speed will be reduced to the safe level.But you need pay attention to the road,do not keep it drive on complex road. Escooter does not fall itself. Mostly drives fall down because of its body lost balance. When drive jumps off, Escooter will stop itself later when it finds there is no weight on it.
5. What is the road and weather condition for driving Escooter?
There is no requirement for Escooter driving condition. Escooter scooters can work well on flat roads, such as big squares, airport and hotels, but it can also work in forest, which roads are not flat enough but moves not as fast a flat roads.
6. Where is Escooter can be used?
It can be used for leasing ,tour and patrol. It has wide application as below: 1) security personnel patrol 2) Personal travel,amusement and short-distance travel 3) Renting in tourist attractions,parks and amusements playgrounds 4) Intelligent robot moving platform 5) Industrial park,factory,greenhouse personal transport
7. How to buy from your company? how to pay?
You can contact our sales for the total payment including shipping cost and then transfer the payment by T/T(Bank transfer) or Western Union.We will send to you via Express by Fedex,DHL or by air. You will receive it in 3--5 days.
